Mppt Solar Charge Controller Simple Solution For Reliable Solar Power

If you’re building or upgrading an off-grid system, choosing the right mppt solar charge controller can make the difference between “pretty good” and “seriously impressive” performance. After spending time with the Renogy Rover 40A and talking to real-world users running it in RVs, cabins, and boats, it’s clear this is more than just a basic black box between your panels and batteries.

Below, I’ll walk through what this controller actually does well, where it falls short, and who it’s really suited for. I’ll also share some practical observations you don’t always get from the spec sheet things like noise, ease of setup, and how the Bluetooth app feels in day-to-day use.

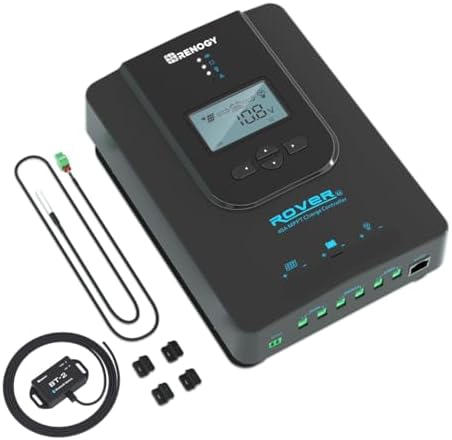

Product Showcase: Renogy Rover 40A MPPT Solar Charge Controller (Bluetooth)

Renogy trimmed the name down in practice to simply the Rover 40A MPPT, and that’s how most users refer to it. It’s a 40-amp, 12/24V auto-detect controller designed for small-to-medium off-grid systems think RVs, vans, cabins, sheds, and small marine setups. In other words, it’s made for exactly the kind of setups most DIY solar owners are building.

The standout feature is that it’s a genuine MPPT unit (Maximum Power Point Tracking), not a cheaper PWM controller. That’s important: when you pair modern higher-voltage solar panels with this controller, you’re squeezing as much energy as possible out of your array instead of leaving watts on the table.

Renogy also includes a Bluetooth module in the package, so you don’t have to hunt down an extra dongle. That means you can monitor your system wirelessly with the Renogy DC Home app super handy when the controller is buried in a cabinet or electrical bay.

If you want to jump straight to the product page and current pricing, you can check it out here: Renogy Rover 40A MPPT.

Pros & Cons of the Renogy Rover 40A

Key Advantages

First, the performance. Renogy quotes MPPT tracking efficiency over 99% and conversion efficiency up to 98%, and in real-world use this does translate into better charging in marginal conditions. On cloudy days or with partial shade, users consistently report higher input compared to older PWM or cheaper controllers. For typical 12V systems, up to 520W of solar input is supported; on 24V systems, up to 1040W.

Battery flexibility is another strong point. The Rover 40A supports sealed, flooded, and gel lead-acid batteries as well as lithium iron phosphate (LiFePO4). There’s even a user-defined mode so you can fine-tune charge voltages if you have a less common battery or want to match a specific manufacturer’s recommendations.

I also appreciate how quiet it is. Instead of a fan, it uses a hefty integrated heat sink. That means no fan noise kicking on in the middle of the night in a small RV or van, which can be surprisingly annoying with some other brands.

Finally, the included Bluetooth module (BT-1 or BT-2, depending on version) and RJ45 port make monitoring actually convenient. Watching live panel input, battery voltage, and charge stage from your phone is the sort of quality-of-life thing you don’t appreciate until you’ve had it.

Drawbacks and Limitations

On the flip side, this isn’t a tiny, featherweight gadget. At over 4 lb and a decent footprint, you’ll need a solid mount and a bit of wall space, particularly in compact van builds. It’s not absurdly large, but you do want to plot its location before you start running cable.

The interface is functional but not luxurious. The LCD and buttons do the job, yet the menu structure can feel a bit clunky your first time through, especially when customizing lithium parameters. Fortunately, you don’t have to touch it often once it’s dialed in.

Another minor downside is that while the unit protects against a wide range of faults (reverse polarity, overcharge, over-discharge, overload, short circuit, and overheating), you still need to respect wiring and fusing best practices. This isn’t plug-and-play like a portable power station; it’s a real component in a DC system.

Last, Renogy’s ecosystem is a big plus for many people, but if you prefer completely brand-agnostic systems, you may find some of their accessories and app features are most seamless when you stick with Renogy gear.

Description: What This MPPT Controller Is Like to Live With

Real-World Performance and Charging Behavior

On paper, this unit’s ratings 40A, 12/24V, up to 100V solar input are solid, but the day-to-day charging behavior matters more. In a typical 12V RV setup with around 400–500W of panels, you’ll often see the Rover hit its stride mid-morning, ramp up during clear midday sun, then taper off in the afternoon with a nice float stage that respects your battery chemistry.

The 4-stage charging profile for lead-acid (bulk, absorption, float, equalize) is well-tuned and can help stretch the lifespan of AGM or flooded batteries if you’ve previously been using a crude charger. For lithium, the 2-stage bulk and absorption approach, plus lithium reactivation, works well for modern LiFePO4 banks, and the user-defined mode gives you that extra layer of control for advanced setups.

One standout detail is its ability to “wake up” a battery that’s dropped to 0V, feeding it a gentle current to bring it back within a usable range. This isn’t a miracle cure for abused batteries, but it’s a very handy safeguard in off-grid situations where someone accidentally leaves loads on for too long.

Temperature compensation on lead-acid charging is handled automatically (with no compensation on lithium), which reduces the chance of overcharging or undercharging in very hot or cold environments, as long as you’ve installed the temperature sensor appropriately.

Ease of Installation and Setup

Installation is straightforward if you’re comfortable with basic DC wiring. The sequence is important: connect the battery to the controller first, then the panels. Doing it in this order allows the unit to auto-detect system voltage correctly and prevents some common misconfiguration headaches.

The terminal blocks are sized for 8AWG to 6AWG wire, which is appropriate for the current rating and typical cable runs in small systems. The included mounting brackets give you flexibility in positioning the controller on a wall or board, and the casing feels solid enough for van or marine environments with moderate vibration.

The LCD and LED indicators show system status, charge stage, and any error codes. The first time through the menus may feel slightly dense, but once you’ve set the battery type and, if needed, customized voltages, you rarely need to touch it again. For most people, the Bluetooth app will become the default interface.

One practical tip: mount it somewhere you can at least briefly access the front panel. Even if you’re planning to use Bluetooth for everything, having visual access to status lights and the LCD makes troubleshooting far easier.

Noise, Heat, and Overall Build Quality

This is where the passive cooling design really shines. Instead of using a fan, the controller relies on its metal heat sink to dissipate warmth. Under heavy load on a hot day, you’ll feel it get warm to the touch, but you won’t hear anything. For people sleeping just a few feet from their power electronics, that’s a big plus.

The shell is insulated and feels robust, and the controller carries UL certification, which gives some reassurance for permanent installs in cabins, small homes, or RVs. Operating temperature is rated from around -31°F to 113°F (-35°C to 45°C), which covers most real-world scenarios, although, as always, installing it in a somewhat ventilated area is a smart move.

Overall, the build feels purpose-made for off-grid life tough enough to ride in a camper, but still “living room friendly” enough for an indoor cabin power wall without looking like industrial hardware.

Specs: What You’re Actually Getting

Electrical Ratings and Limits

Nominal system voltage is 12V or 24V, with automatic detection on initial power-up. The rated charge current is 40A, which defines how much current can flow into your battery bank under maximum solar harvest conditions.

For a 12V battery system, the controller is rated for up to 520W of solar input. For a 24V system, you can feed up to 1040W. The maximum open-circuit voltage (Voc) the unit can accept from the array is 100V DC, with a typical operating MPPT range starting around 17V.

MPPT tracking efficiency is listed at greater than 99%, while conversion efficiency tops out at around 98%. These values mean the controller is very good at turning available panel power into usable battery charging current, reducing waste as heat.

The unit uses a multi-stage charging algorithm: 4-stage for lead-acid (including equalization) and 2-stage for lithium. With proper setup and compatible batteries, this is more than adequate for full-time off-grid living or extended boondocking.

Battery and System Compatibility

Supported chemistries include sealed (AGM), gel, and flooded lead-acid batteries, as well as lithium iron phosphate (LiFePO4). There are built-in presets for the common types, plus a “User” profile that lets you override voltage setpoints to match a specific battery spec sheet.

Temperature compensation on lead-acid batteries is handled with a default of approximately 3mV/°C per 2V cell. Lithium batteries, as expected, use no temperature compensation, which is standard practice for that chemistry.

The terminal range supports 8AWG–6AWG wire for battery and solar connections, which aligns with 40A operation over typical distances. For longer runs, you may need to upsize wiring to manage voltage drop, but that’s a system design consideration more than a controller limitation.

The load terminals allow you to connect DC appliances directly, with several programmable load modes. It’s a nice option for smaller cabin lights or low-current devices, though many users still prefer to run everything through a dedicated DC distribution panel.

Physical Dimensions and Environment Ratings

Physically, the controller measures about 9.38 x 6.78 x 3.05 inches (238 x 172 x 77 mm) and weighs roughly 4.41 lb (2.03 kg). That’s substantial enough to feel serious, but still within the range you can easily mount with basic tools.

Operating temperature ranges from -31°F to 113°F (-35°C to 45°C), covering most non-industrial applications. For very hot climates, ensuring space for air circulation around the heat sink will help maintain efficiency and longevity.

The integrated heat sink is the heart of its passive cooling approach and is one reason the unit can run quietly even under load. For RV and marine installs, the lack of a fan also means one less moving part to fail over time.

If you want to cross-check some of these specs against general industry guidelines, the U.S. Department of Energy’s overview of charge controllers is a useful reference point.

Why We Recommend the Rover 40A for Many DIY Solar Builds

This controller hits a sweet spot between capability, reliability, and price. It’s not the cheapest option on the market, but for many DIY solar builders, the extra performance and protection features are well worth the step up from bare-bones models.

First, the genuine MPPT design means you’re making better use of your panels, especially if you’re combining multiple modules in series. Over months and years of off-grid use, that higher harvest translates into more usable energy and potentially fewer panels needed to meet your daily loads.

Second, its battery flexibility supports the typical upgrade path most people follow. You might start with affordable lead-acid batteries, then eventually swap in a LiFePO4 bank. With the Rover 40A, you don’t have to change out your solar charge controller when you make that jump; you just adjust the settings.

Third, the safety features and UL certification add peace of mind when mounting this in a small living space or remote cabin. Built-in protections against reverse polarity, overcharge, over-discharge, short circuits, and overheating help catch common mistakes before they do real damage.

Finally, the Bluetooth monitoring isn’t just a gadget it genuinely helps you understand how your system behaves. Seeing real-time power flow, voltage, and daily production makes it easier to notice problems early, like a failing panel, a bad connection, or a battery that’s not holding charge like it used to.

If your system is within the 40A / 520–1040W range and you want a “set it up once and trust it” controller, this one is easy to recommend. You can see the latest price and reviews here: check availability here.

Target Audience: Who This Is NOT For

As capable as it is, this mppt charge controller won’t be the right fit for everyone. If you’re running a very small system say a single 50–100W panel for a trickle charger on a weekend cabin this is probably more controller than you need. A basic PWM unit would be cheaper and easier to justify for that use case.

It’s also not ideal for very large systems that push past the 40A limit or need higher battery voltages like 48V. In those cases, you’d be better served by a higher-capacity controller or multiple units designed to work together in parallel for large residential-scale arrays.

If you’re dead-set against using a smartphone app or any form of connected device, the Bluetooth feature may feel wasted. The controller still works fine without the app, but part of the appeal is being able to see what’s going on from your phone or tablet.

Last, if your budget is extremely tight and you mainly need a simple charge controller for solar panel protection on a small backup system, the Rover family might feel like overkill. It’s built for people who see their off-grid system as a central part of daily life rather than a once-in-a-while backup.

Complementing Ideas and Helpful Resources

To get the most out of this controller, it’s worth pairing it with a well-thought-out battery bank and wiring plan. If you’re still in the planning stages, you might like our guide comparing different types of solar panel charge controllers for DIY systems, which breaks down MPPT vs PWM in more depth.

For van and RV owners, integrating the Rover 40A with other DC components, like DC-DC chargers and distribution panels, can really streamline your electrical system. We cover some of those integration ideas in our article on building a reliable RV solar power setup, including wiring tips and real-world layout examples.

If you’re comparing multiple brands before pulling the trigger, consider making a short checklist: max current, supported battery chemistries, monitoring options, and installation environment (indoor vs exposed). The Rover tends to score well across all four, which is why it keeps popping up in experienced builders’ recommendations.

And if you decide this is the right controller for your system, here’s the product link one more time so you don’t have to scroll back up: see the Renogy Rover 40A on Amazon.

For a deeper technical dive into how MPPT works under varying sunlight conditions, the overview from NREL is also worth a look, especially if you enjoy understanding what’s happening under the hood of your solar charger controller.

In short, if you want a reliable, quiet, and flexible solar power charge controller you can grow with, the Rover 40A belongs on your shortlist and for many real-world setups, it’s the one that ends up on the wall.

Get full specs, price, and customer reviews here.

Your Questions, Answered
